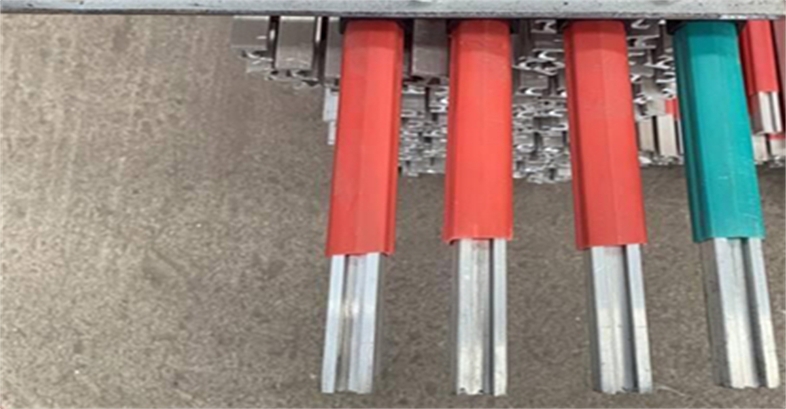

Sliding Wire

Send Message Inquiry Now

Slide lead type		DMHX- 200- L(T)	DMHX- 320- L(T)	DMHX- 400- L(T)	DMHX- 500-L	DMHX- 630-L	DMHX- 800-L	DMHX- 1000-L	DMHX- 1250-L	DMHX- 1600-L	DMHX 2000-L
Rated Current(A)		200	320	400	500	630	800	1000	1250	1600	2000
Section Area of Conductor( mm2		110(50)	140(80)	160(100)	260	320	410	610	760	960	1200
Rated voltage	AC. V	660	660	660	660	660	660	660	660	660	660
Rated voltage	DC.V	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Specifieg ength of guide rod(m)		4.5	4.5	4.5	4.5	6.0	6.0	6.0	6.0	6.0	6.0
Space of carrying parts(m		1.5	1.5	1.5	1.5	3.0	3.0	3.0	3.0	3.0	3.0
Min.spacing of each phase(mm)		46	46	46	46	80	80	80	80	80	80
Max.length without Expansion(m		150	150	150	150	200	200	200	200	200	200
Min.bend radius(m)		1.5	1.5

Overview

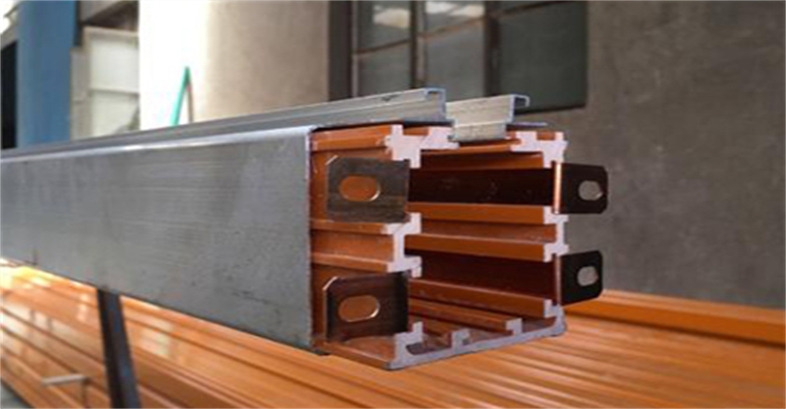

The crane slinding wire is used to supply power to the moving equipment and consists of two parts.Slinding wire guide rail (fixed part, connected to the power supply, normal guide rail is connected by a single length of 4m/piece or 6m/root).Current collector (sliding part), which can slide on or within the slip track and contact with the copper strip to draw power, the current collector is used to connect with the mobile motor).

Advantages of Sliding Wire:

1.The slidingwire is installed without joints, which is simple, time-saving, and has small space.

2.The slidingwire is made of special materials, ensuring smooth operation, fast speed, and low noise.

3. No joint, continuous power supply

4. Small space, low noise

5. Low voltage drop

6. Stable operation, fast speed, good conductivity and contact performance

7. Easy to install, replace and transport

8. Long service life

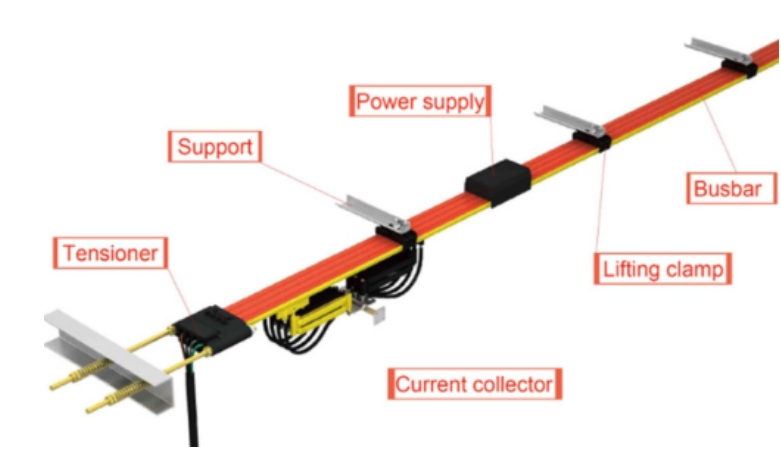

Structure:

Application:

The crane slinding wire is used to supply power to the moving equipment.
