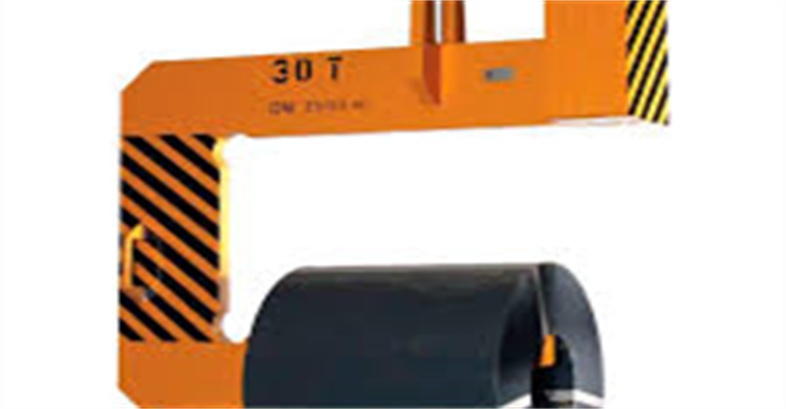

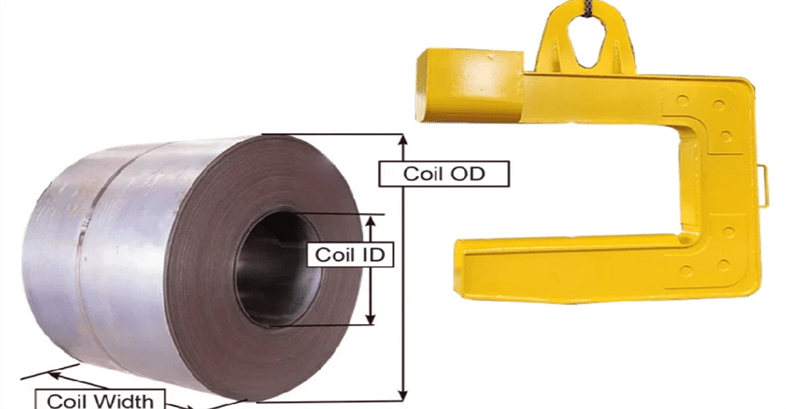

Roll Lifting C Hook
| work load | coil width(mm) | the diameter of inner coin (mm) |
inner width |
inner height |
itself weight(mm) |
Dead Weight (kg) |
| 3T | 300-500 | 2400 | 500 | 450 | 350 | |
5T |
750-900 | ≥400 | 900 | 500 | 450 | 80 |
| 900-1100 | 2400 | 1100 | 600 | 650 | 100 | |
| 1100-1300 | 2560 | 1300 | 600 | 800 | 200 | |
10T |
700-900 | ≥560 | 900 | 650 | 600 | 330 |
| 900-1120 | ≥560 | 1120 | 850 | 900 | 460 | |
| 1100-1300 | ≥560 | 1300 | 750 | 1000 | 845 | |
| 1300-1500 | ≥560 | 1500 | 850 | 1200 | 1500 | |
15T |
900-1100 | ≥560 | 1100 | 850 | 1200 | 2500 |
| 1100-1500 | ≥560 | 1500 | 850 | 1600 | 4200 | |
25T |
900-1100 | ≥560 | 1100 | 860 | 1800 | 9100 |
| 1100-1500 | ≥560 | 1500 | 860 | 2500 | ||
| 30T | 1400-1660 | ≥560 | 1160 | 850 | 3400 |
Overview
Roll Lifting C Hook is mainly used for the horizontal lifting of the coiled plate. Because its shape resembles the literal C, it is called a Roll Lifting C Hook.
Advantages of Roll Lifting C Hook：
1. Spreader: it is the main part of Roll Lifting C Hook, which is made of steel plate (high-quality low-alloy steel) and steel pipe. The cross-section is box type structure, with good bending and torsion resistance. The weight of the sling is light and the service life is long.
2. Counter weight iron: it can adjust the balance of spreader to make the center of gravity of spreader and object in the same line.
3、The structure is simple and reasonable, the use is convenient, and the lifting is safe and reliable.

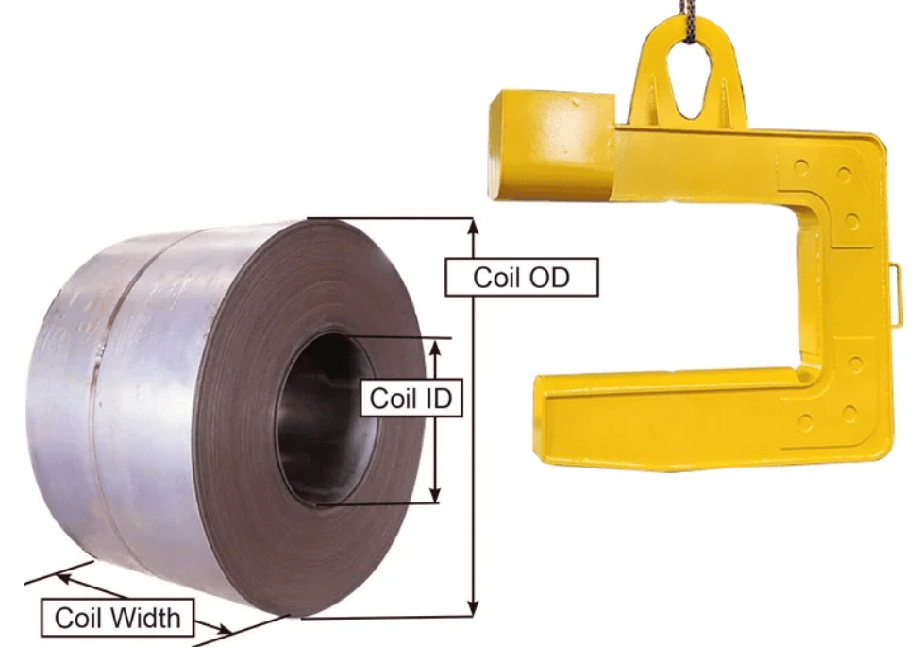

Structure:
Application

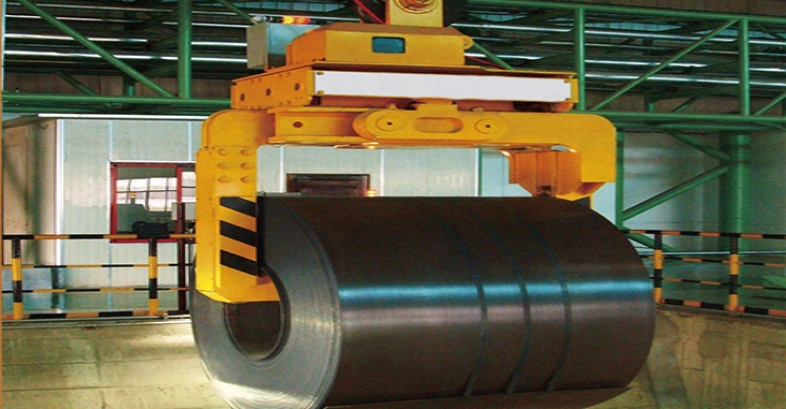

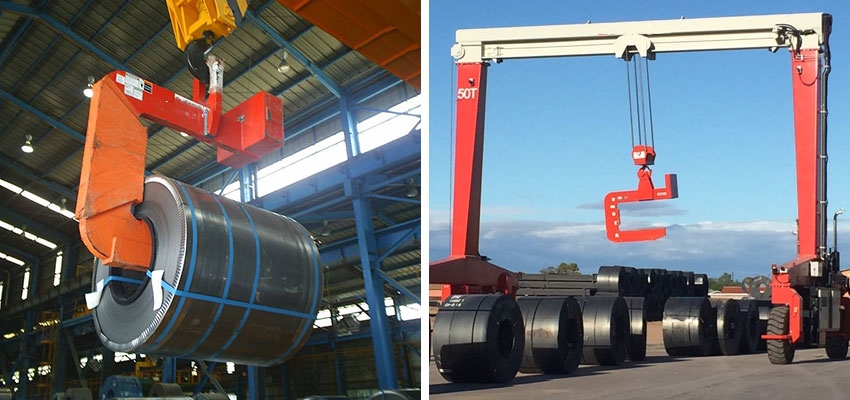

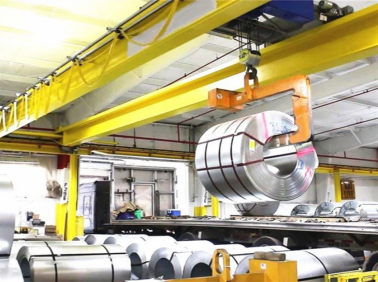

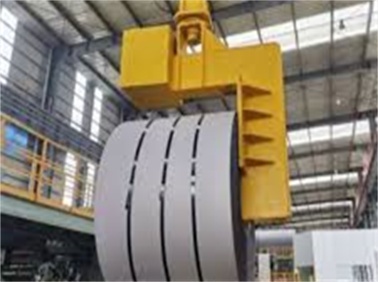

Roll Lifting C Hook is widely used in hot-rolled strip mill and cold-rolled strip mill, as well as in stations, freight yards, wharves and large-scale coil users.
