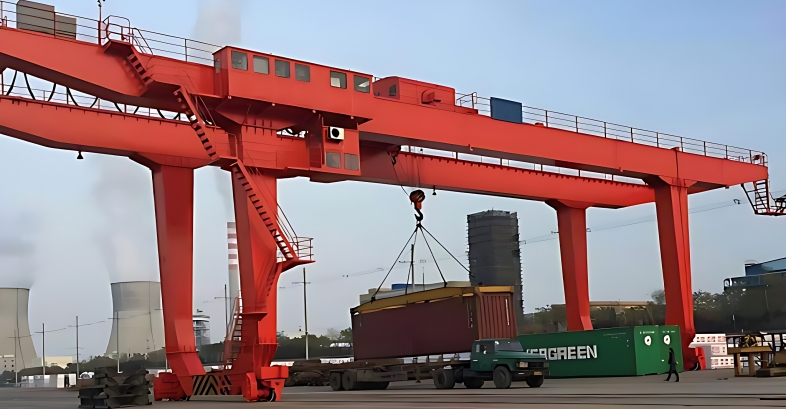

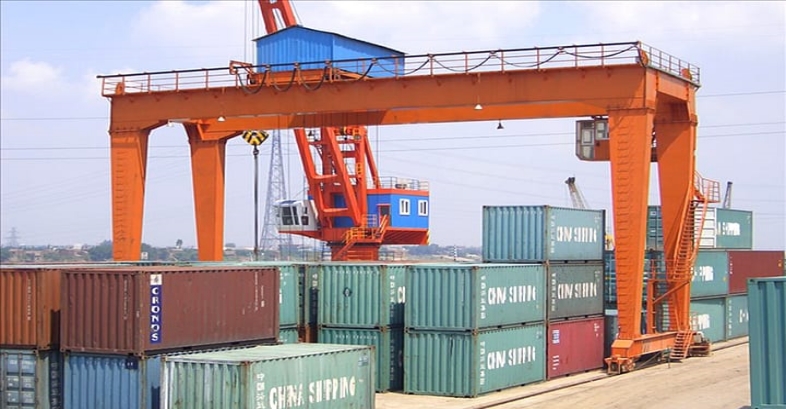

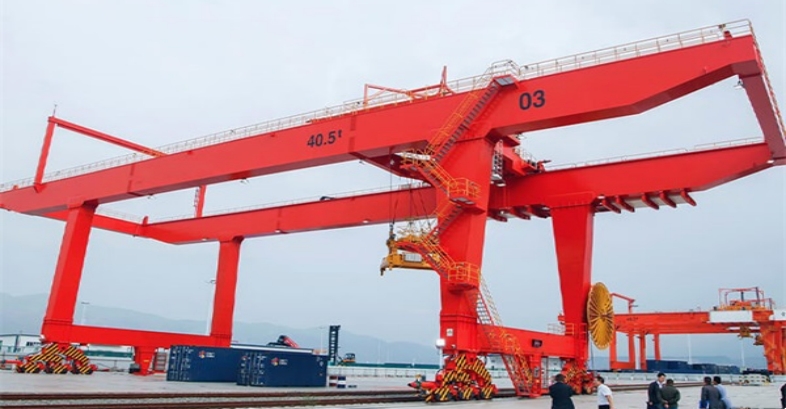

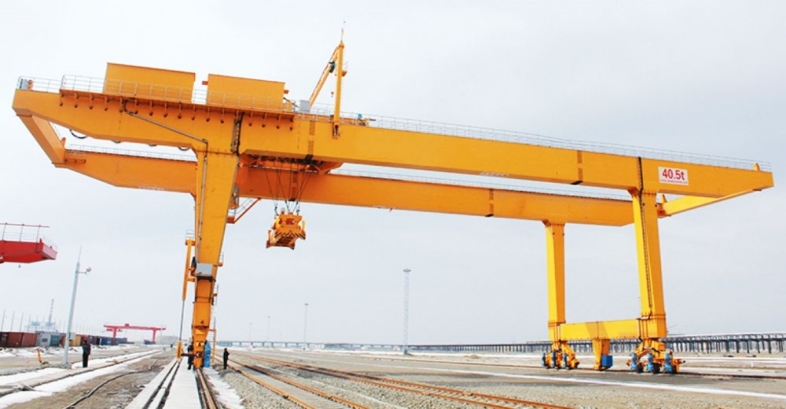

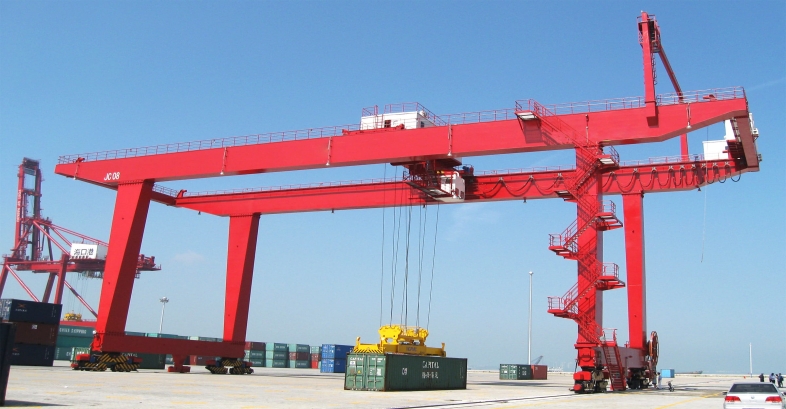

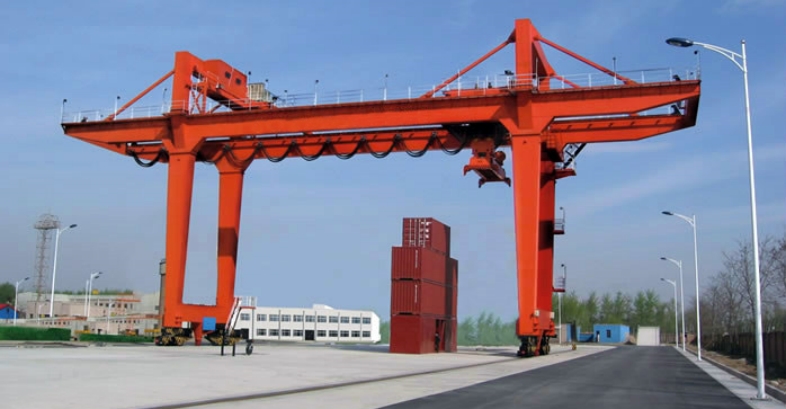

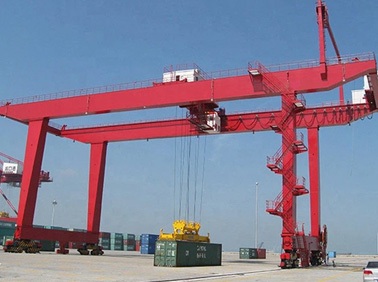

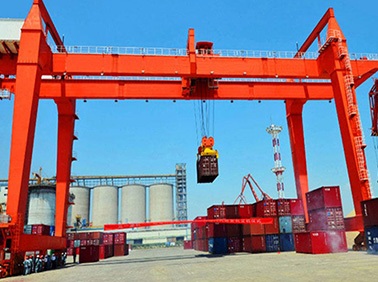

Rail Mounted Container Gantry Crane
| Capacity(spreader weight not include) (t) |
3,540 | 40 |
| Working level | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20,40',45 | 20',40',45 |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 5,070 | 24 |
| Long Travel Speed (m/min) | Full Load-90;Without Load-130 | Full Load-20;Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |
Overview
Rail mounted container gantry crane (RMG crane) is mainly used to load, unload, move and stack containers in railway transship fields and large container storage yards. It is constituted by main girder, rigid and flexible outriggers, trolley travel mechanism, lifting mechanism, crane travel mechanism, electric system and operation cab.
Advantages of Rail Mounted Container Gantry Crane
1. Advanced technology, exquisite design, beautiful appearance.
2. Novel structure, large span, high stability, strong reliability.
3. Large loading capacity, high work efficiency, flexible operation and simple maintenance.
4. The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.
5. The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.
Application
Rail mounted container gantry crane (RMG crane) is mainly used to load, unload, move and stack containers in railway transship fields and large container storage yards.
