End Beam

Send Message Inquiry Now

Work Load	customized
Length	1.2-6m
Warranty	1 Year
Power Supply	380V,50HZ,3-Phase or Customized
Control method	Wireless Remote Control

Overview

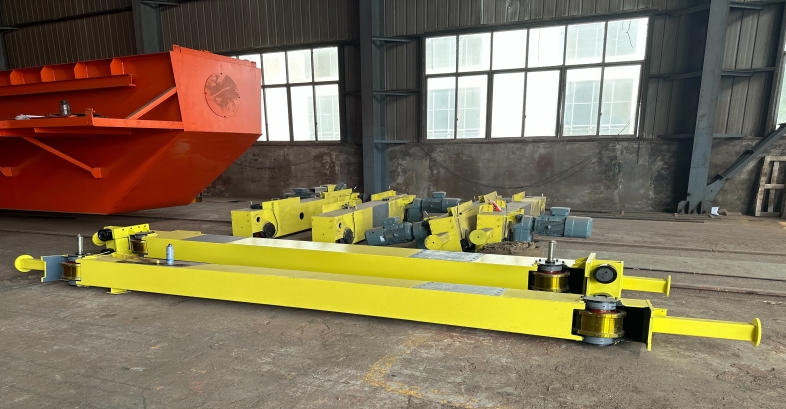

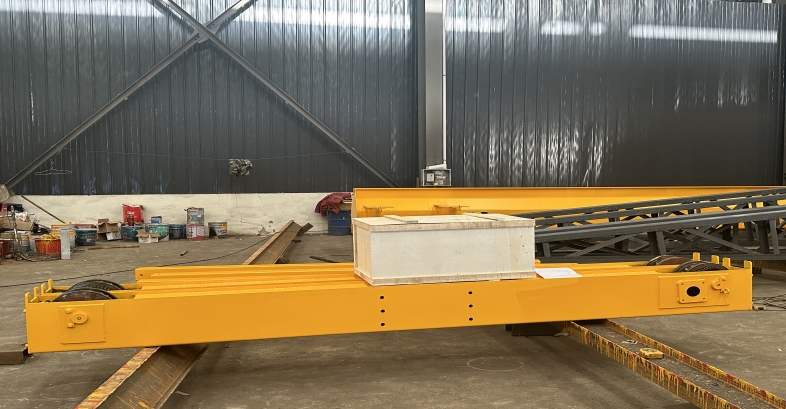

The end beam is a complete driving unit for overhead crane traveling, which is connected with the crane main beam. This end beam is also with box girder design with motor, reducer, wheels as a piece of a full set equipment.

Advantages of End Beam:

1、The crane main beam girder can be connected with the end beam by welding or strength bolts. There are bolt holes available for bolts connection.

2、According to different wheel pressure, this end carriage can be fitted with different size wheels with diameters from 150 to 500mm. The wheel has good wear resistance.

3、Driving mechanism adopt soft start motor, which is safe and reliable, gear motor driving mechanism is also available.

Structure:

结构图

Application:

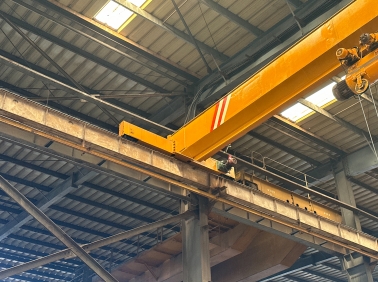

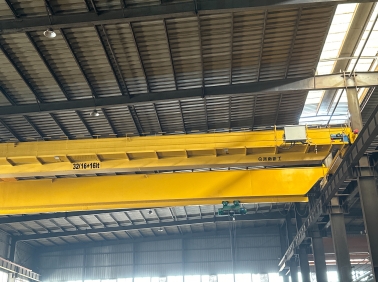

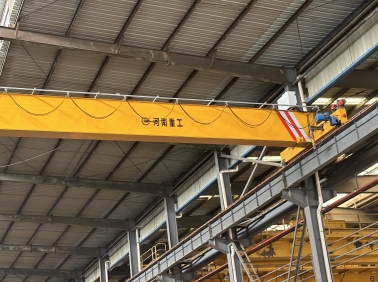

The end beam is used for the crane traveling, it is one of the main supporting parts of the bridge crane and gantry crane.
