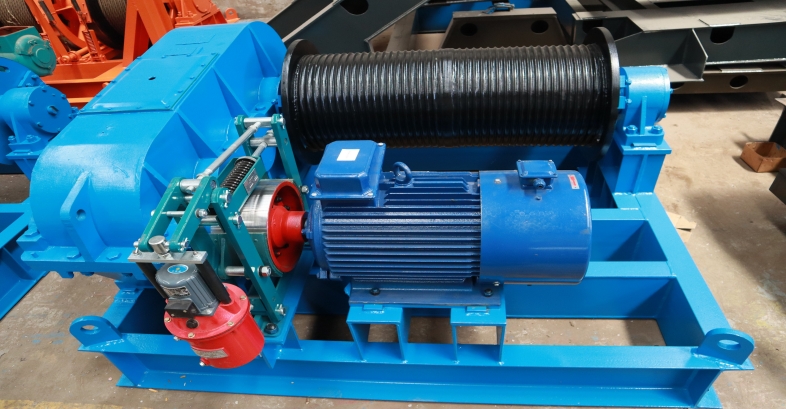

Electric Winch
| Parameter of JM/JK Electric Winch | ||||
| Model | Rated Line Pull(KN) | Capacity of drum(m) | Wire rope | |
| Diameter | lifting speed | |||
| (mm) | (m/min) | |||
| JM1/JK1 | 10 | 100/80 | 9.3 | 15/22 |
| JM2/JK2 | 20 | 150/110 | 13 | 16/24 |
| JM3.2/JK3.2 | 32 | 200/250 | 15.5 | 12/30 |
| JM5/JK5 | 50 | 250/200 | 21.5 | 9.5/30 |
| JM8/JK8 | 80 | 250/250 | 26 | 8/30 |
| JM10/JK10 | 100 | 250/300 | 30 | 8/30 |
| JM12 | 120 | 300 | 32 | 8 |
| JM16 | 160 | 500 | 37 | 10 |
| JM20 | 200 | 600 | 42 | 10 |
| JM25 | 250 | 800 | 48 | 9 |
| JM32 | 320 | 700 | 50 | 9 |
| JM50 | 500 | 700 | 60 | 9 |
Overview
This electric winch is gear reducer driving winch. This series of electric winch is mainly used for hoisting, pulling and unloading, towing the heavy cargo, such as various types of large and medium sizes of concrete, steel structure, installation and disassembly of mechanical equipment. It's applicable to civil construction and installation projects of construction and installation enterprises, mining areas and factories, etc.
Advantages of Electric Winch：
1. High versatility, compact structure and small size.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.

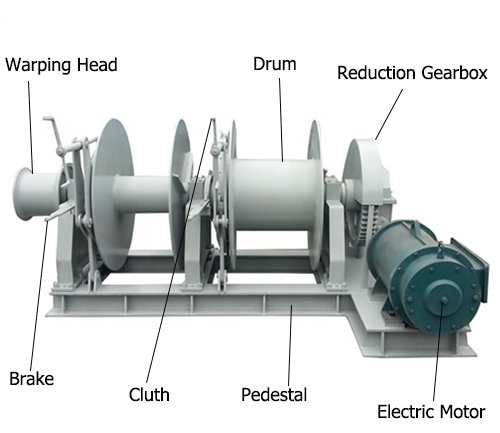

Structure:
Application：
This winch mainly for installation and disassemble of oversize concrete ,steel structure and mechanical equipment . The winch structure is characterized in wire rope arranged in an orderly , safe and reliable . Applicable to all kinds of bridges , ports wharf engineering and large factories and equipment installation project .
