A New Type of Crane Equipment—Light Container Crane

Overview:

Light Container Crane is specially used for container loading and transportation in small and medium-sized container freight yards and small and medium-sized enterprises with the lowest operation cost.

Main function:

Unload and load the container from the container flatbed truck so that operators can continuously load the container at the work site.

At the same time, using container crane for transfer greatly shortens the waiting time for container trucks to load, and ultimately improves the efficiency of container trucks by 12-15 times.

Application Scenarios:

Suitable for loading and unloading containers in logistics companies, warehouses, terminals, container yards, cargo yards and other places.

Four Product Advantages：

1. Simple and efficient. Professional design, small size, efficient and fast, easy to operate.

2. Hydraulic lift. The system pressure is small, the lifting and lowering are smooth and safe, and the loading and unloading efficiency is high.

3. Applicable venues. It is required to be used on a flat, hardened site without potholes.

4. Four wheel steering. The maximum turning angle can reach 110 degrees, enabling steering and translation at any angle.

Features:

1. Powered by diesel engine. The working noise is low and the whole vehicle vibrates little.

2. Hydraulic transmission system, double-acting balancing valve, solid tires. Lifting and lowering are smooth and safe, and loading and unloading efficiency is high.

3. Use an oil cylinder with a diameter of 180mm. Large lifting capacity and low system pressure.

4. Two-wheel/four-wheel drive, four-wheel steering. The maximum turning angle can reach 110 degrees and the turning radius is small.

5. The control system is a complete valve body and operating lever. It is easy and flexible to operate, simple and convenient.

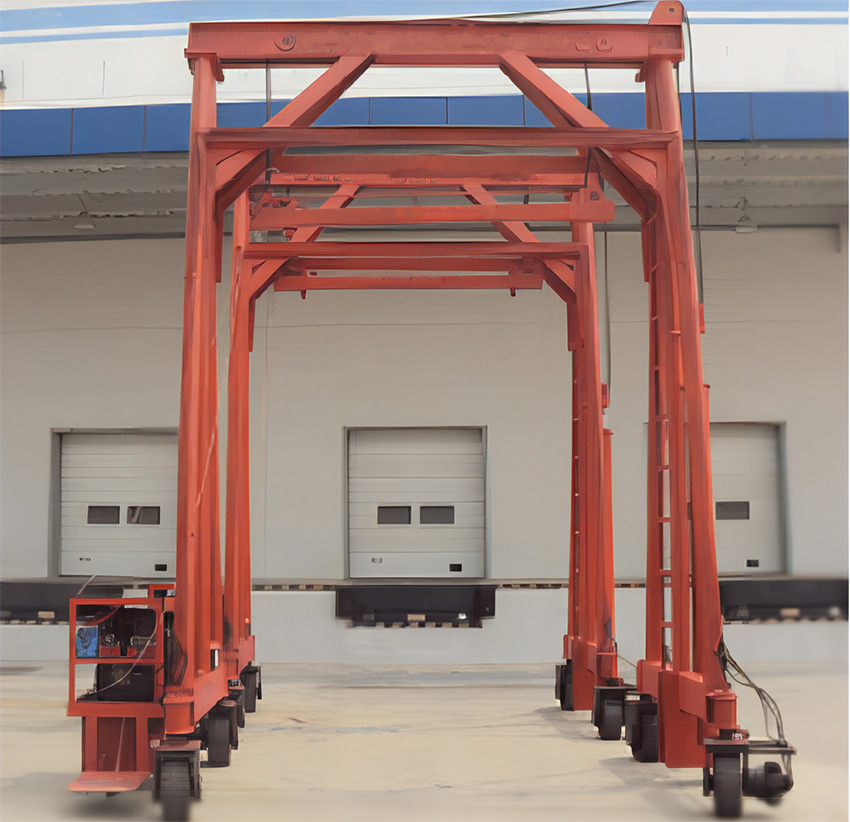

Standard Type-40Ton

Features:

Two-wheel drive, four-wheel steering.

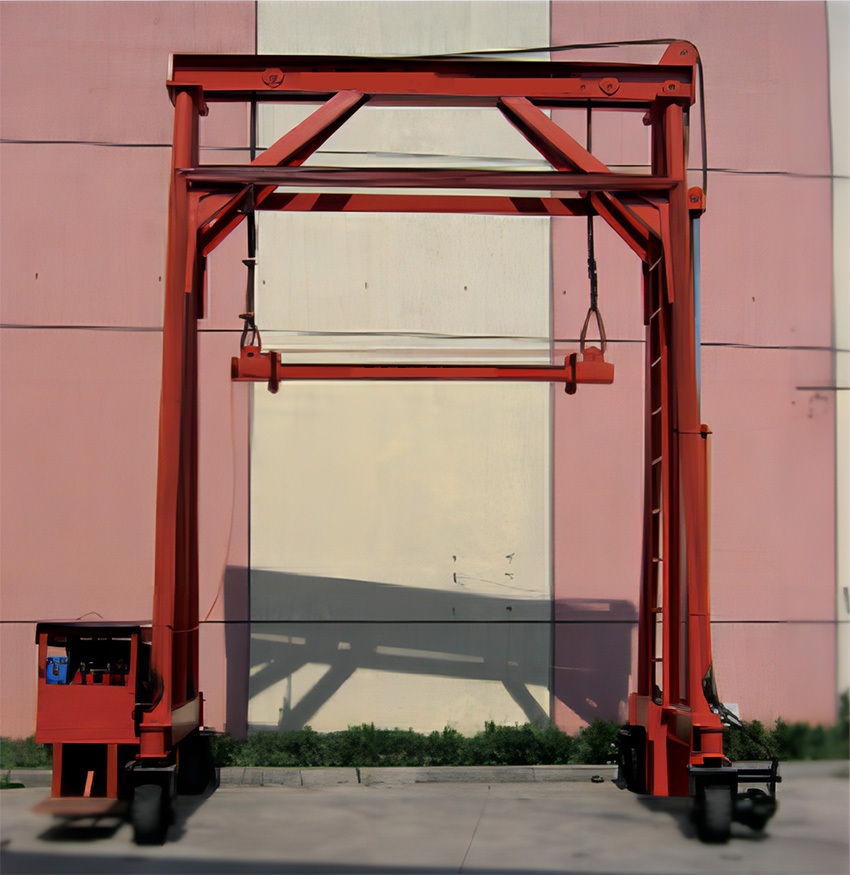

Low lift crane

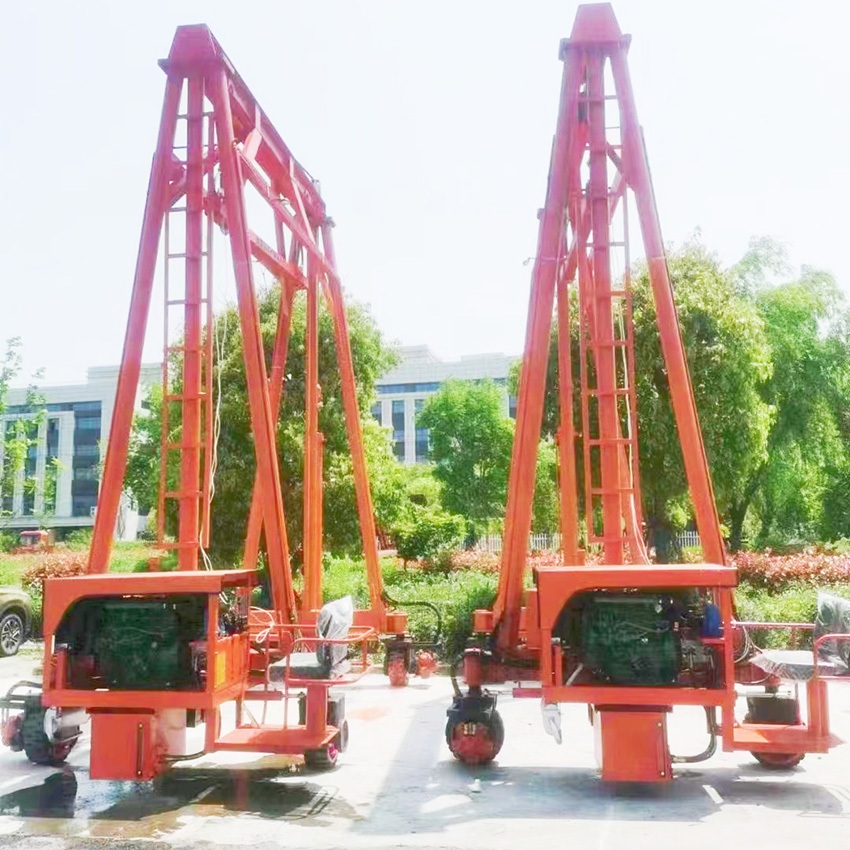

Siamese Type Crane

Features:

1.Four-wheel drive and four-wheel steering.

2.One person can drive it, and the operation is simple and convenient.

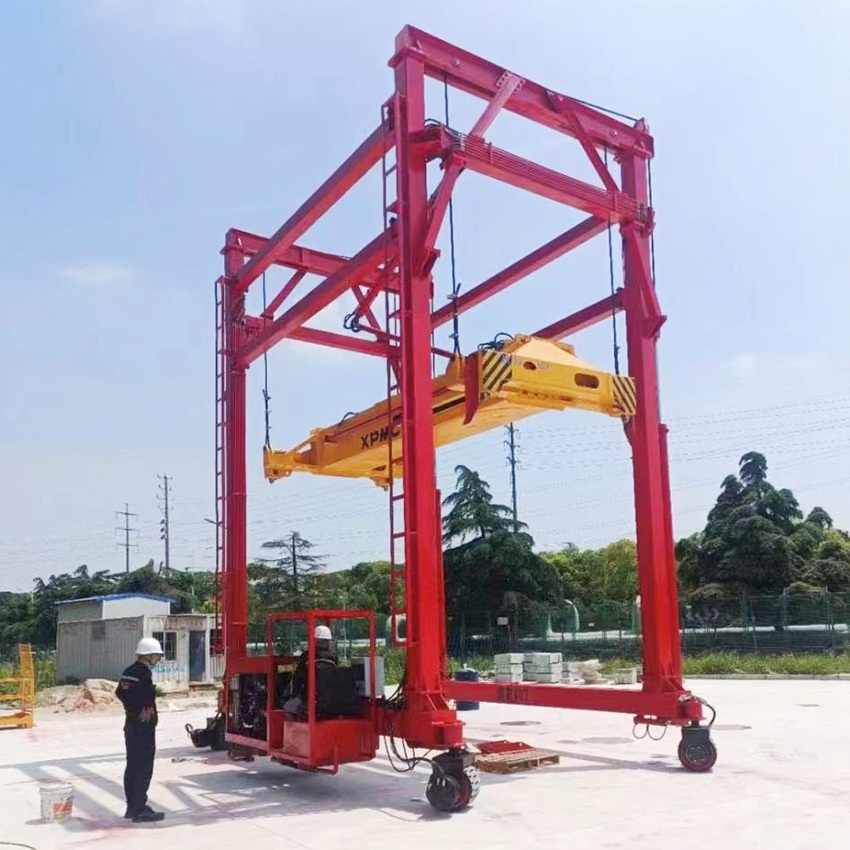

Heightened Crane

Features:

1.Each group consists of two cranes, each of which is an independent movement unit. Each movement unit is two-wheel drive and four-wheel steering.

2.The distance between the two motion units can be adjusted arbitrarily, which is suitable for container hoisting of various specifications.

3.It mainly solves the stacking problem of empty containers, and can realize the stacking of two empty containers, making one machine multi-purpose.

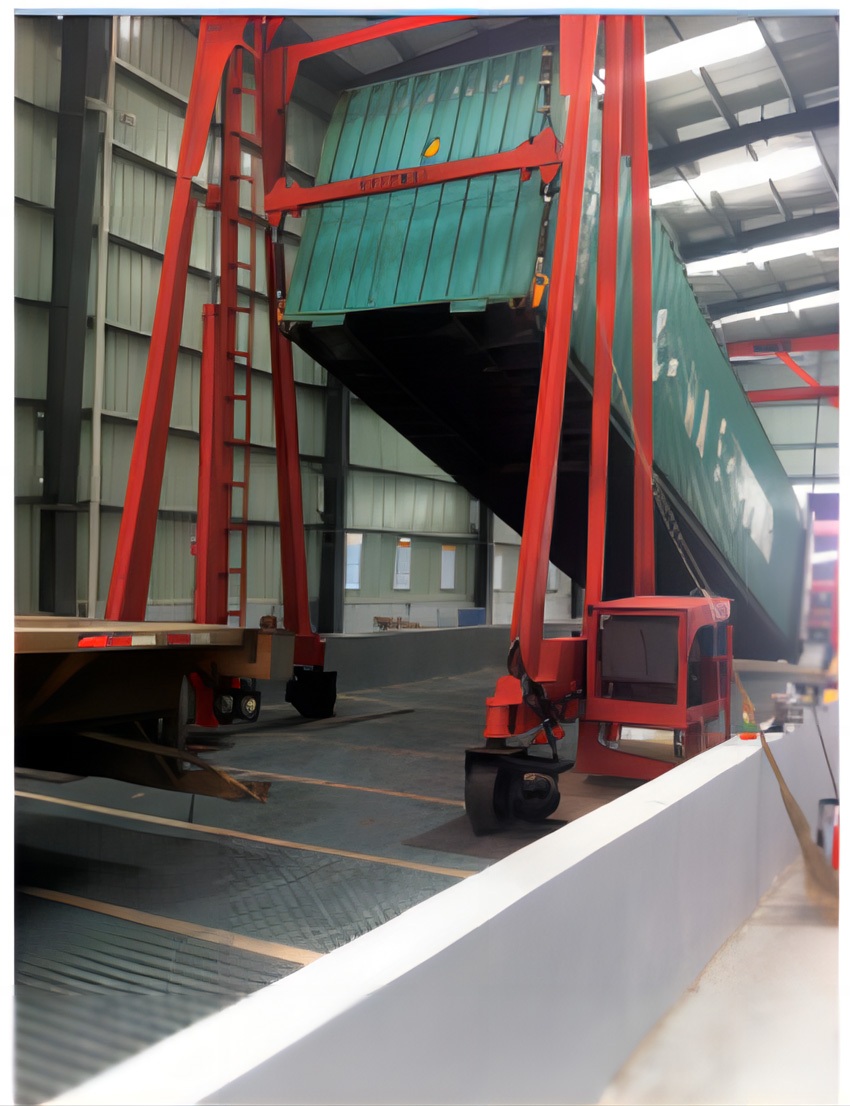

Inclined Crane

This crane is specially designed for dumping cargo in containers (including liquids, scattered solids, etc.).

Features:

The machine can make the maximum tilt angle of a 20-foot container reach 42 degrees, and the maximum tilt angle of a 40-foot container reach 24 degrees.

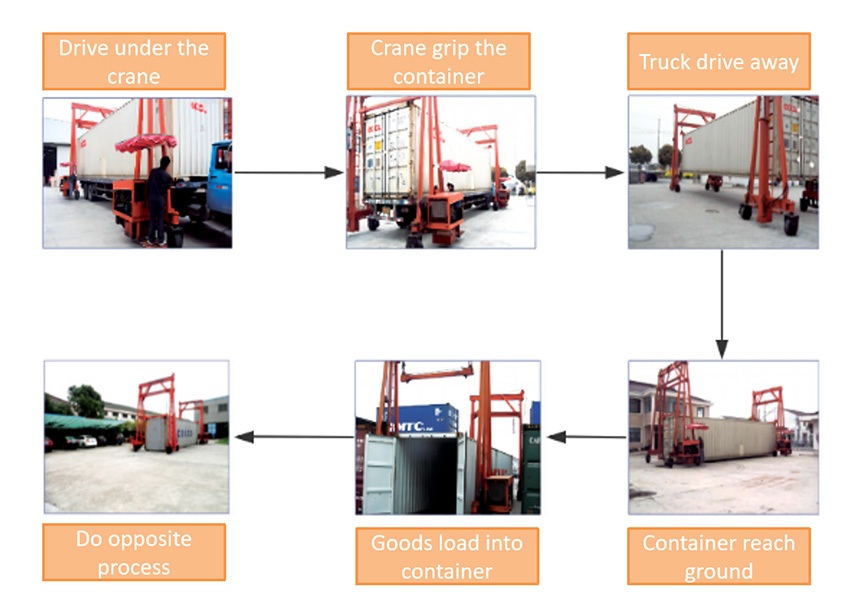

Schematic Diagram of Operation Process

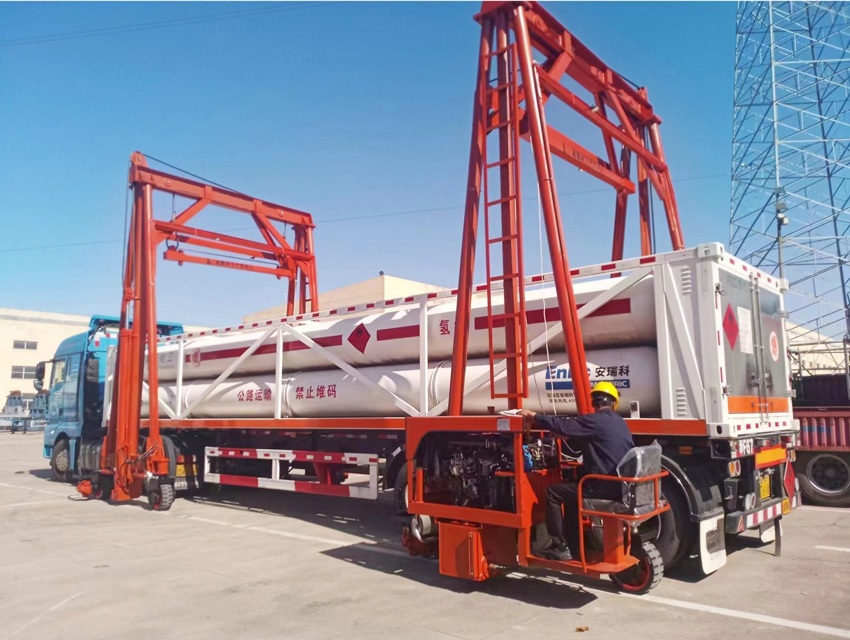

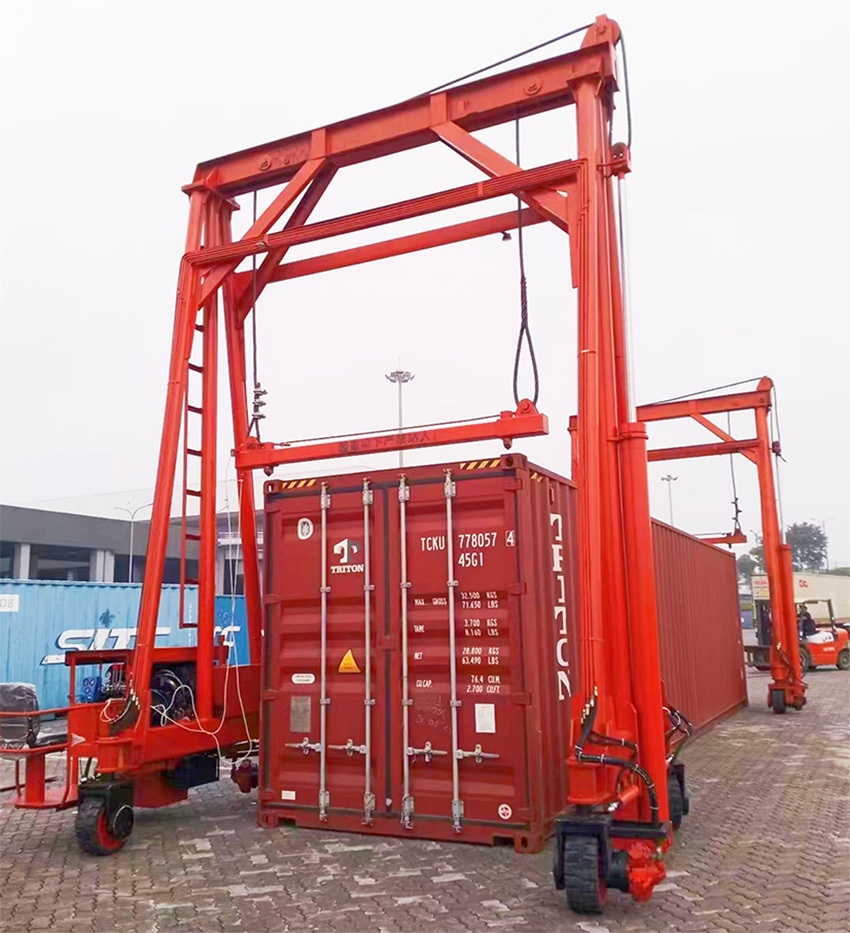

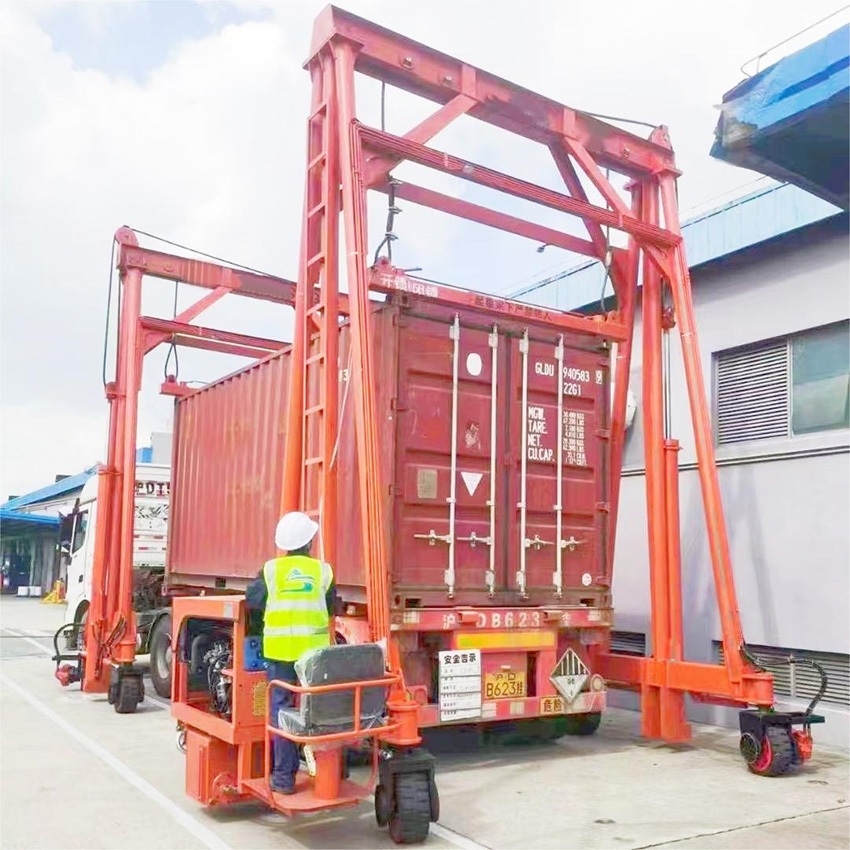

Application scenarios
